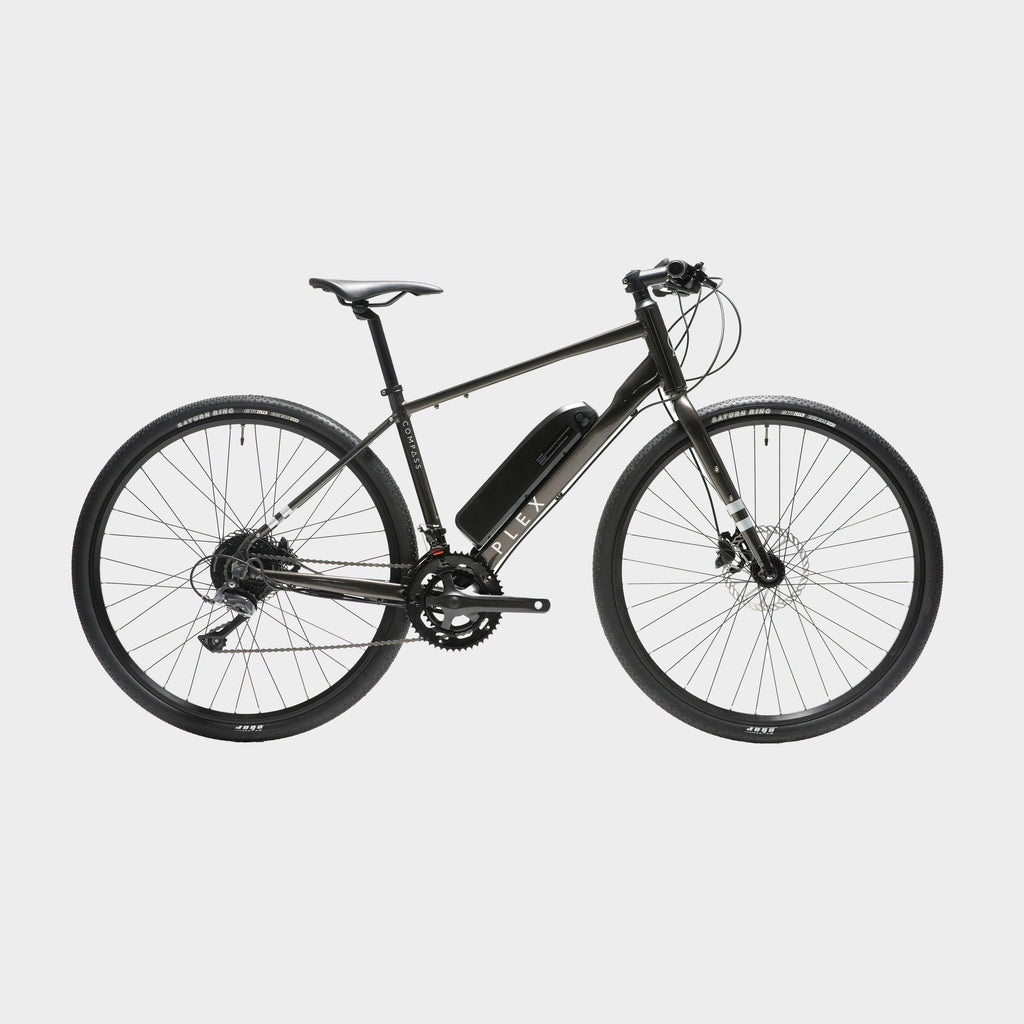

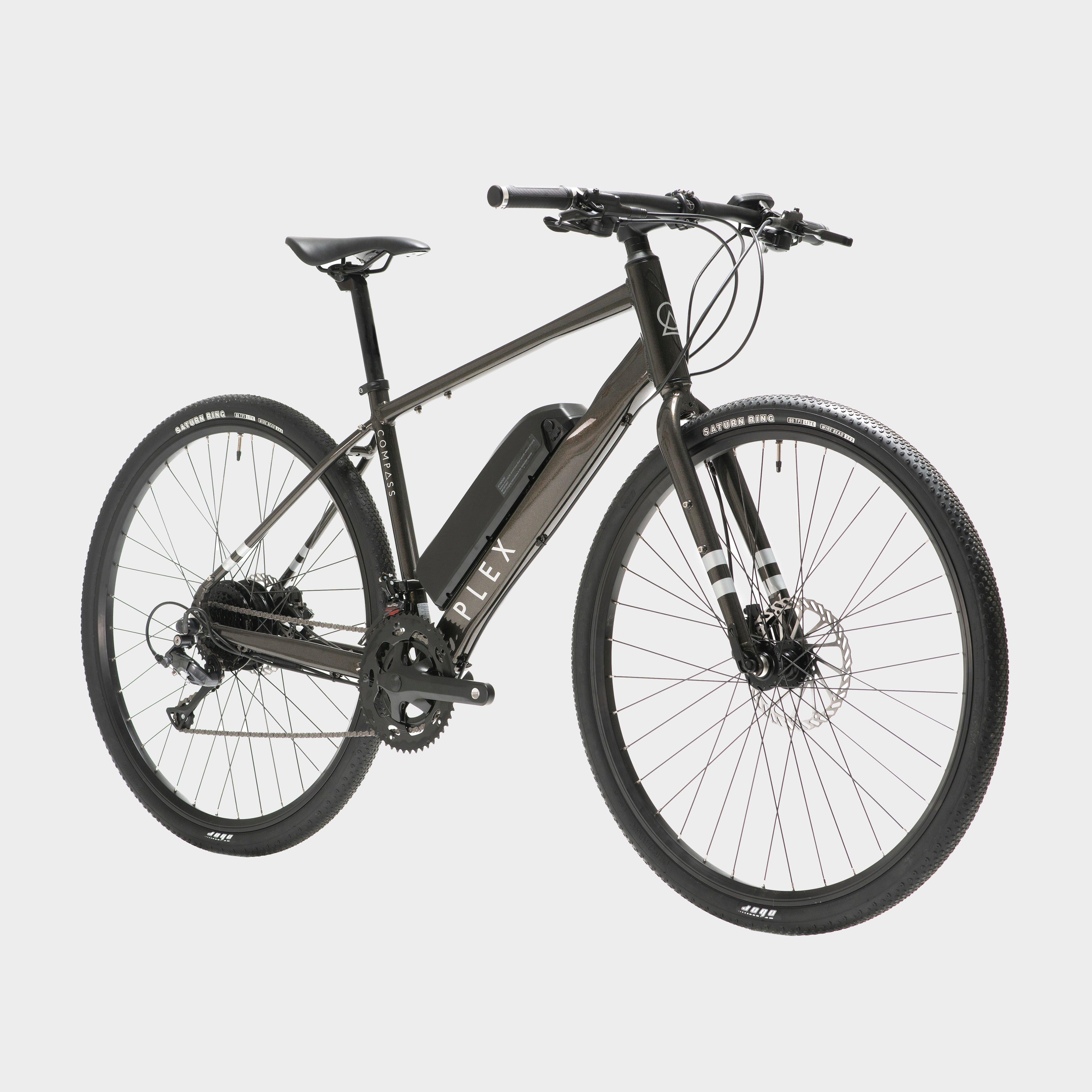

The Compass Plex E-Bike is designed to handle your daily rides with ease, whether you're commuting or exploring new paths. Its relaxed head angle and tall headtube provide a confident, comfortable riding position, making it perfect for both short trips and longer journeys. Built with a durable yet lightweight aluminium frame, this bike can carry everything you need, thanks to its pannier rack mounts and mudguard fittings, keeping you riding no matter the weather.

Equipped with a 250W Promovec hub motor and an 8.8Ah battery, the Plex offers impressive power and a range of up to 60km – ideal for a full day of riding. The bike’s 16 Shimano gears let you tackle both smooth roads and gravel tracks with ease, while the all-weather tyres ensure excellent grip and a smooth ride. Whether you’re commuting or heading off the beaten path, the Compass Plex is a reliable, versatile e-bike that offers great value for money.

• Long toptube and a relaxed head angle for confident and controlled riding
• Rides fast and composed on roads and gravel tracks
• Pannier rack mounts and mudguard mounts
• 250w/36V Promovec rear hub motor
• Large 8.8Ah battery - 60Km approx range
• Built for exploring and commuting with ease
• Perfect do it all e-bike
• Frame: Alu 6061 29”, 138 spacing for hub motor, Post-mount disc, 44mm headtube

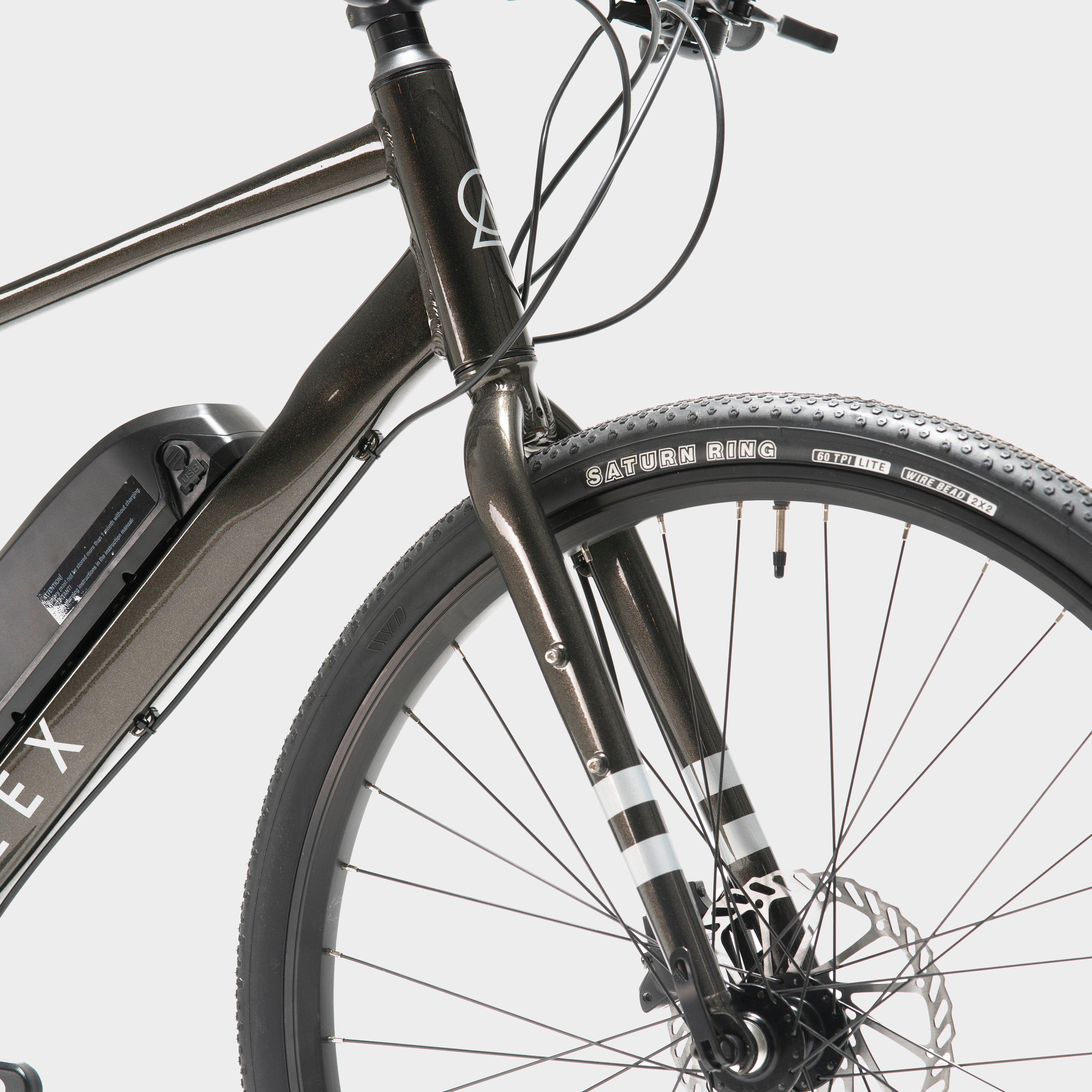

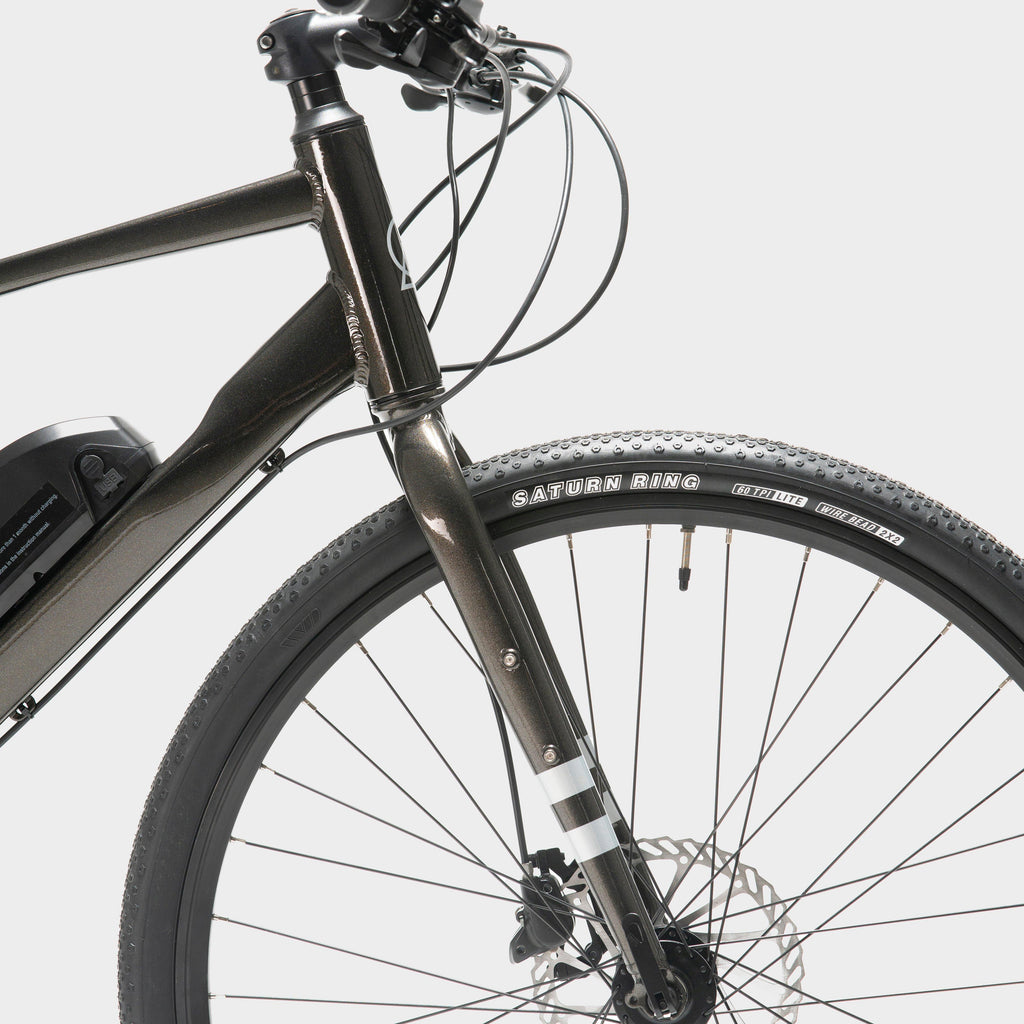

• Forks: Alu fork with mudguard mounts and bottle cage bosses
• Handlebar: Alloy 700mm wide, 6°backsweep, 31.8mm clamp
• Stem: 31.8mm clamp, 90mm extension
• Grips: Double lock-on grip
• Headset: Semi-integrated, ZS44
• Saddle: Compass hybrid, steel rails
• Seatpost: 27.2mm x 350mm
• Seatclamp: Alu, 31.8mm

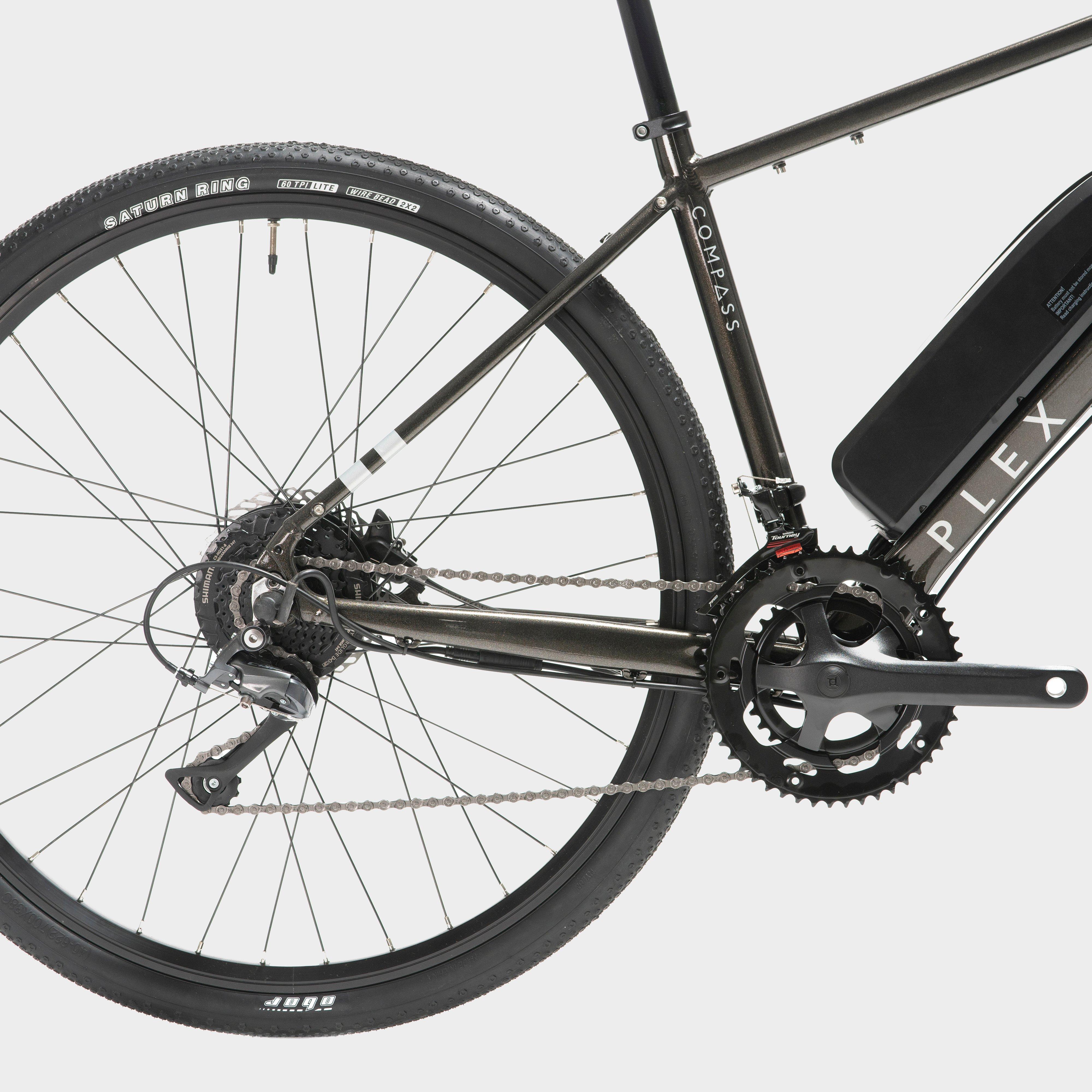

• Chainset: 170mm crank, 50x34T
• Pedals: Flat pedals
• Bottom Bracket: Square taper 73mm BB
• Drivetrain: Shimano 16 speed
• Cassette: Shimano 8 speed 11-34T
• Chain: KMC Z8
• Shifter right: Shimano Altus 8 speed
• Shifter left: Shimano Altus 2 speed
• Rear derailleur: Shimano Claris 8 speed
• Front derailleur: Shimano down pull 31.8

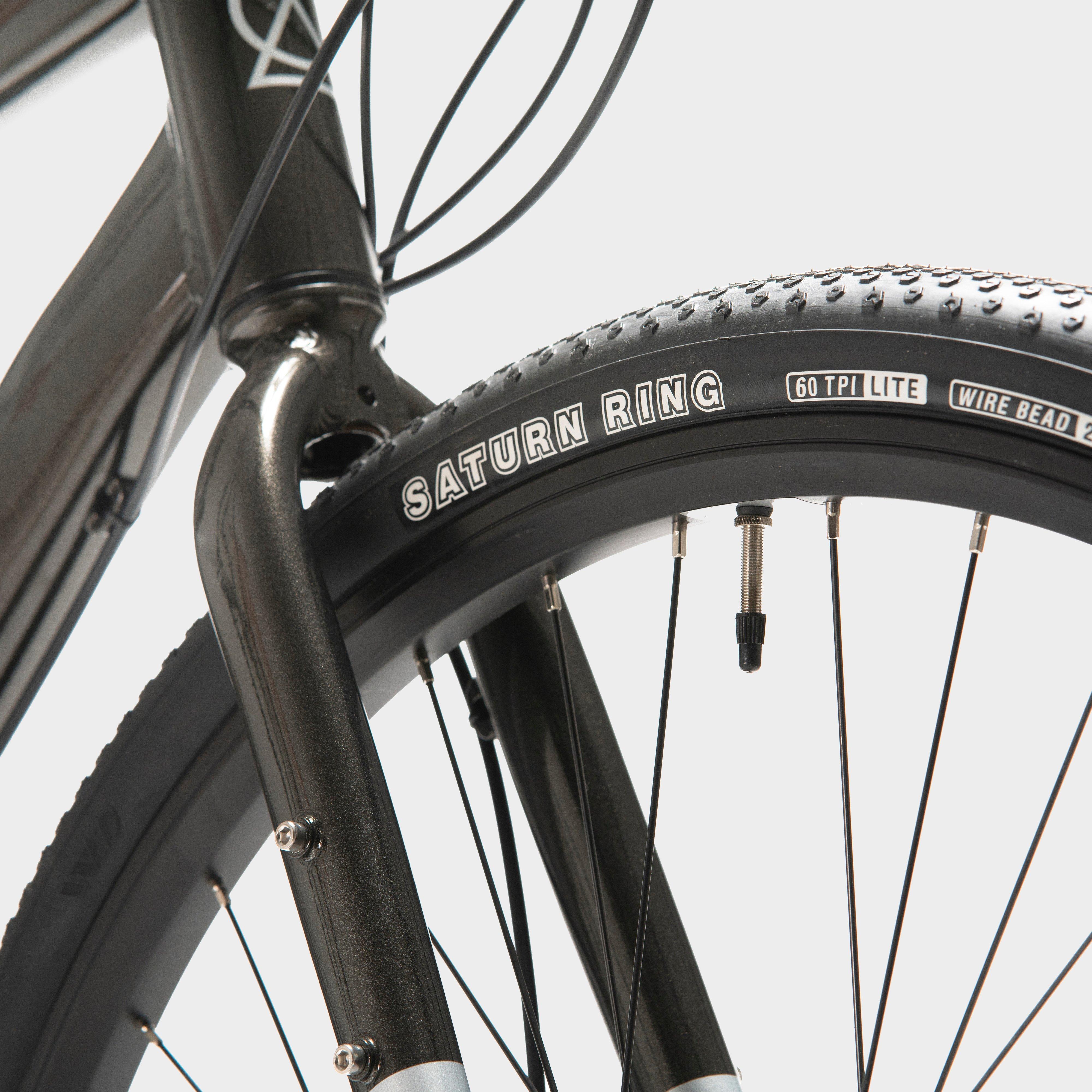

• Tyres: Obor 700 x 38c
• Rims: 29”, 25mm wide, 32h, alu double wall
• Front Hub: Alu, black, 36h, 6 bolt disc, 100mm QR

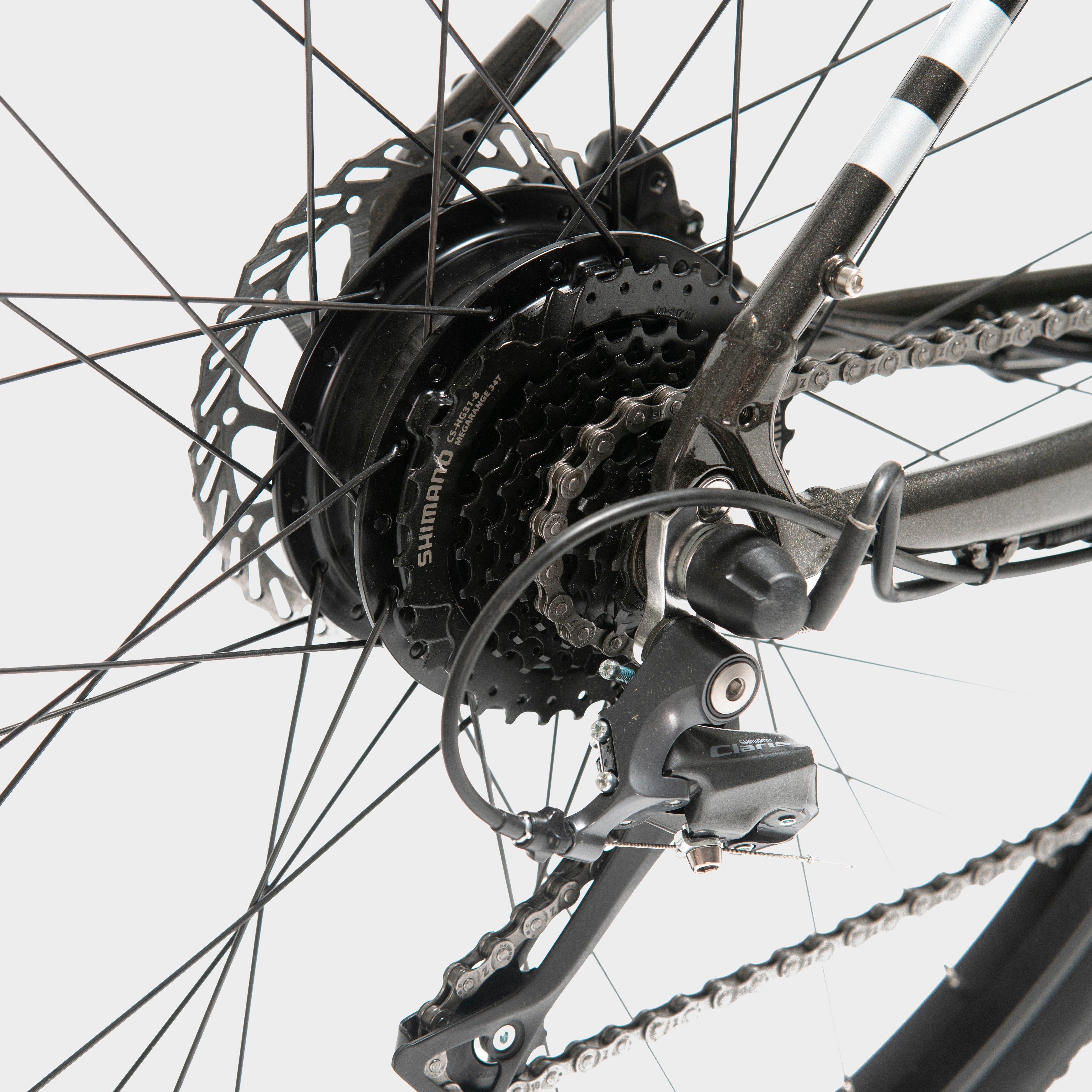

• Rear hub motor: Promovec 250W/ 36V hub motor 135mm, 24mm Nut, 36h, 50971-BL
• Front brake: Shimano MT200 hydraulic disc brake
• Rear Brake: Shimano MT200 hydraulic disc brake
• Front rotor: 160mm
• Rear Rotor: 160mm

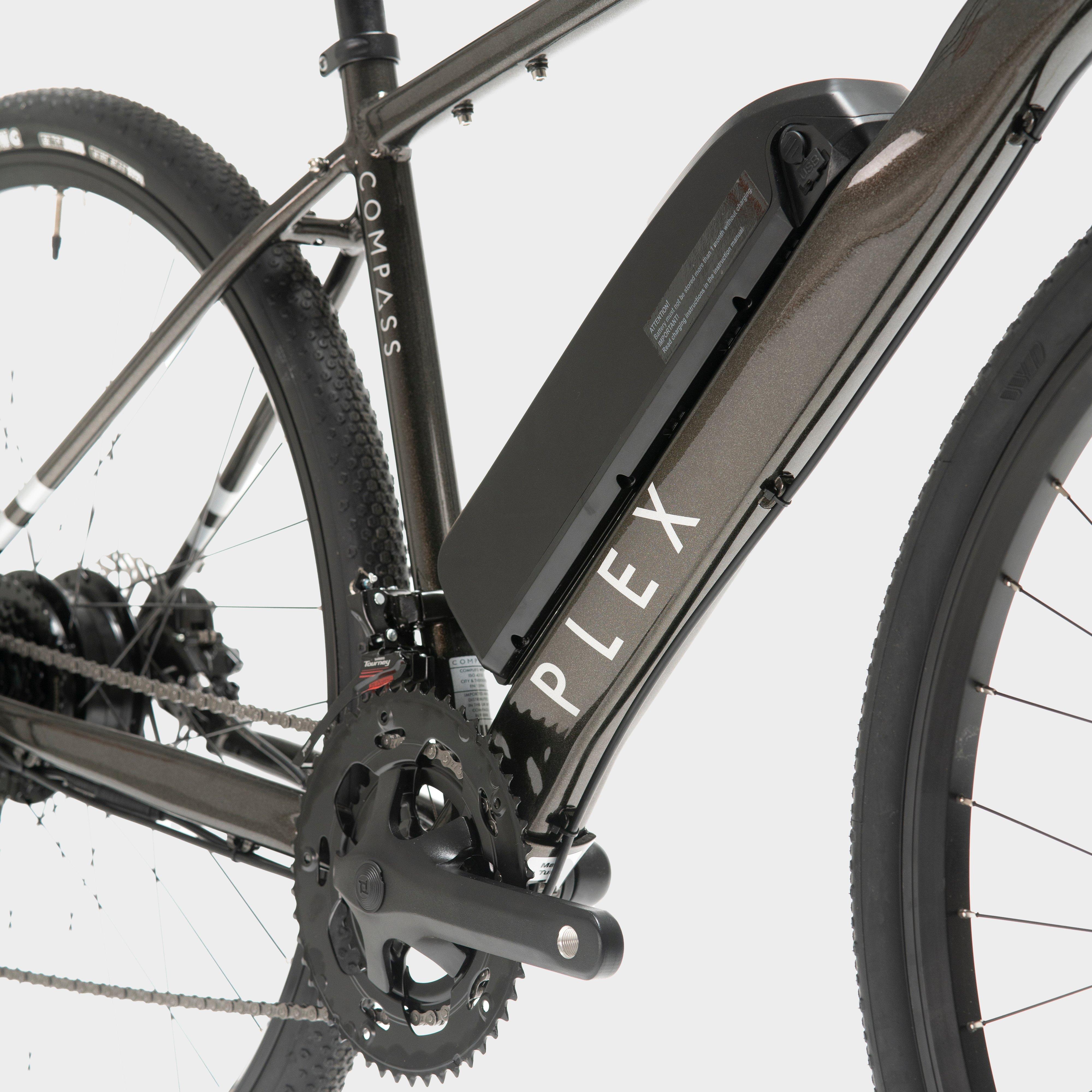

• Battery: Promovec 50790 - BL - DT2 - 36V - 8.8AH - 317Wh - 60km
• Controller: 50972-C-S06-185-E0-29 - Battery controller 36V FOR DT2 V1+ screw 4x 50122
• Display: 50982 - 750- Handlebar LED Display
• Speed sensor: 50960 - 180- Sensor,BB-speed compact, 5 polet plug
• Battery charger: Battery charger 36V for DT2 V1 + screw 4x 50122

Please note: some minor specification changes may occur without notice. Any changes will use equivalent or higher quality parts.

Building your bike: Bikes purchased online are delivered boxed and will require assembly before they can be used. View the GO Outdoors Bike Assembly guide for more info, including step-by-step and video instruction guides.

We are happy to assemble your bike for FREE at any GO Outdoors store with a bike servicing department (this excludes all GO Express stores, and selected other GO locations). Please call ahead to confirm that you would like us to build your bike. You can find store details and phone numbers here. Every bike sold also comes with FREE 6
